Technical Specification

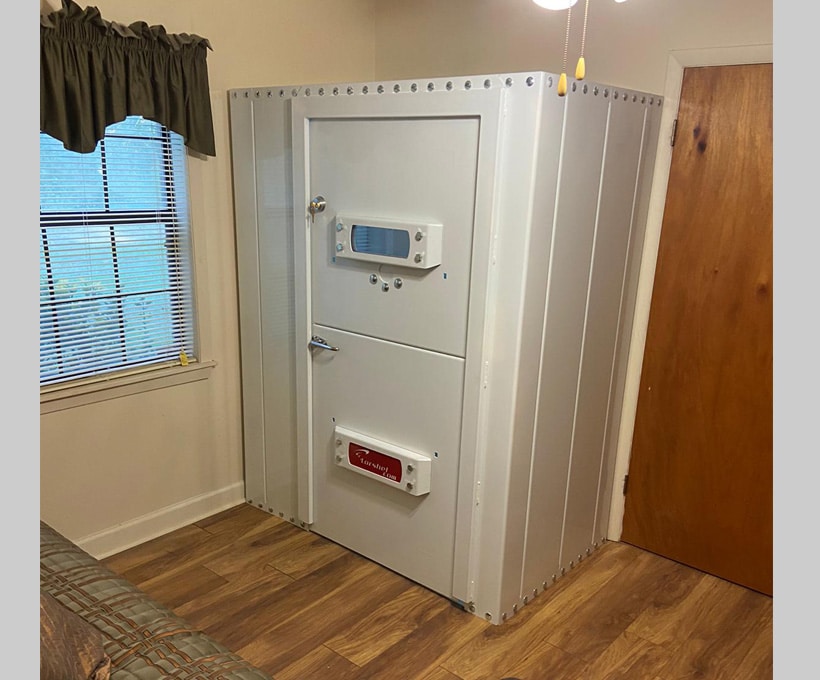

- Outside dimensions: 3’W x 5’ L x 6’5” H (15 SF)
- Capacity: up to 5 people at 3 SF per person
- Made of ASTM A36, 3/16” structural steel
- Four heavy-duty corner columns
- 2” x 3/8” rib frame every 12”
- 3/16″ precision laser cut door with 2″ x 3.25″ x 3/16″ channel reinforcement and 4 heavy-duty hinges
- 28” W x 72” H door opening, not wheelchair accessible due to the dimensions of the unit

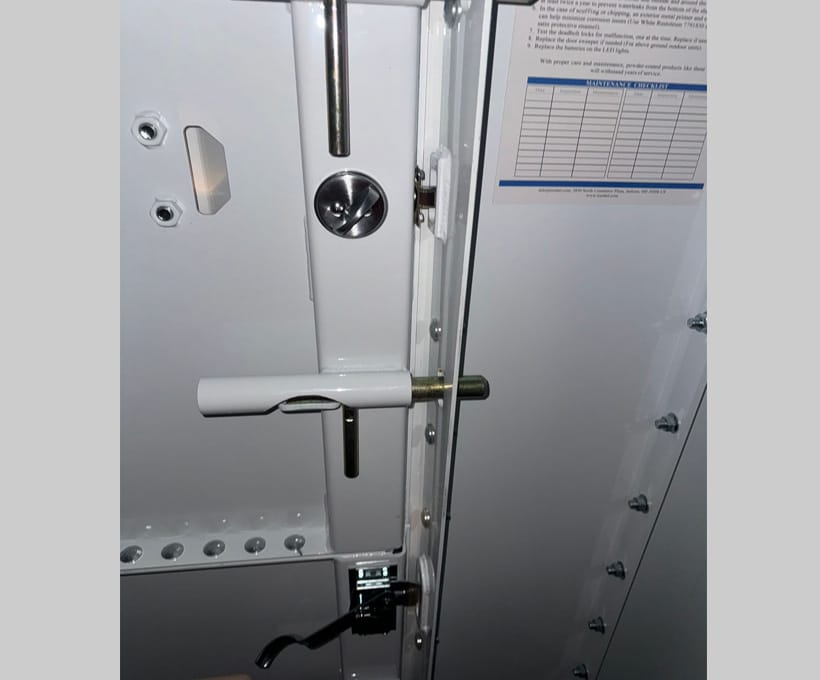

- 4 interior heavy-duty, 5/8” x 5” steel sliding T shape locks
- Cast iron door handle
- Emergency escape wrench (to remove the bolts from the inside)
- One deadbolt lock on the door
- Bullet resistant window made 1.5” polycarbonate
- 8” air intake and extra ventilation located around the frame of the door
- Battery-powered LED lights
- Electricity inside the safe room with a GFCI (Ground Fault Circuit Interrupter) extension cord with 4 outlets and a switch 125 V, 15 A, 14/3 Gauge

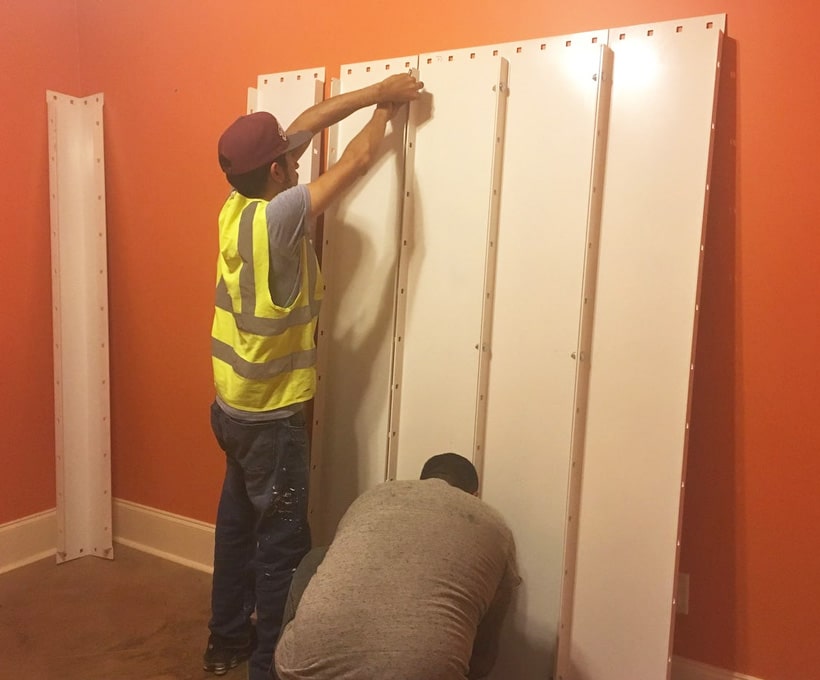

- One-day installation
- Standard anchors for a 4”, 3,000 PSI concrete slab: 12 3/4” D x 4 3/4” L HILTI expansion bolts; one every 12”. The combined tension load (pull-up force) is over 75,000 lb. and over 140,000 lb. of shear (horizontal force)
- Best anchoring method in the industry. Suggested for new construction or outdoor units: 12”, 3,000 PSI concrete slab. 12, 3/4” D x 10” L HILTI expansion bolts; one every 12”. The combined tension and shear force loads will nearly double compared to the 4” long anchors, which included for new construction – worth $200
- The safe room is portable if installed in the garage or outdoors
- Powder-coated, rust and corrosion resistant
- Weight: approximately 1,800 lb.
