Technical Specification

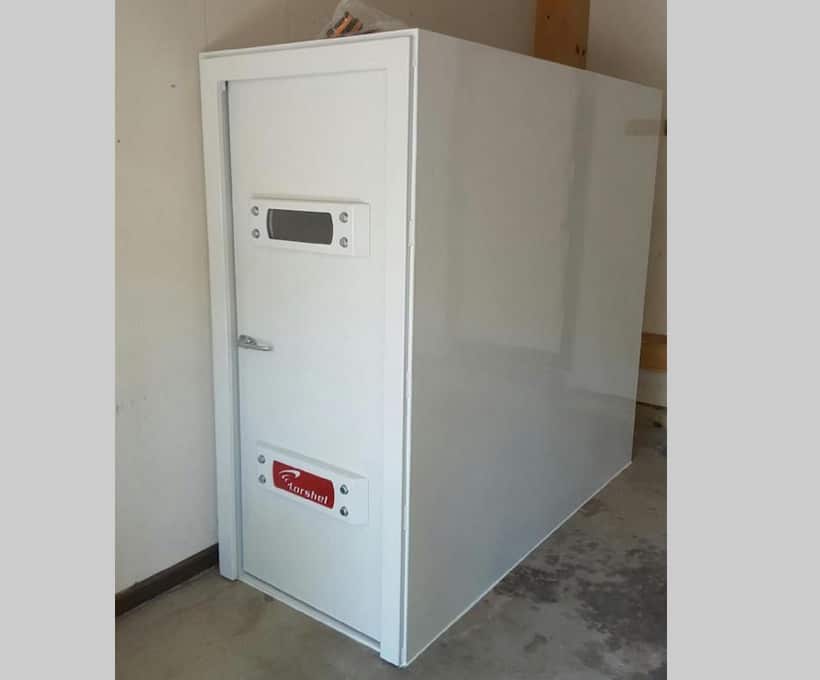

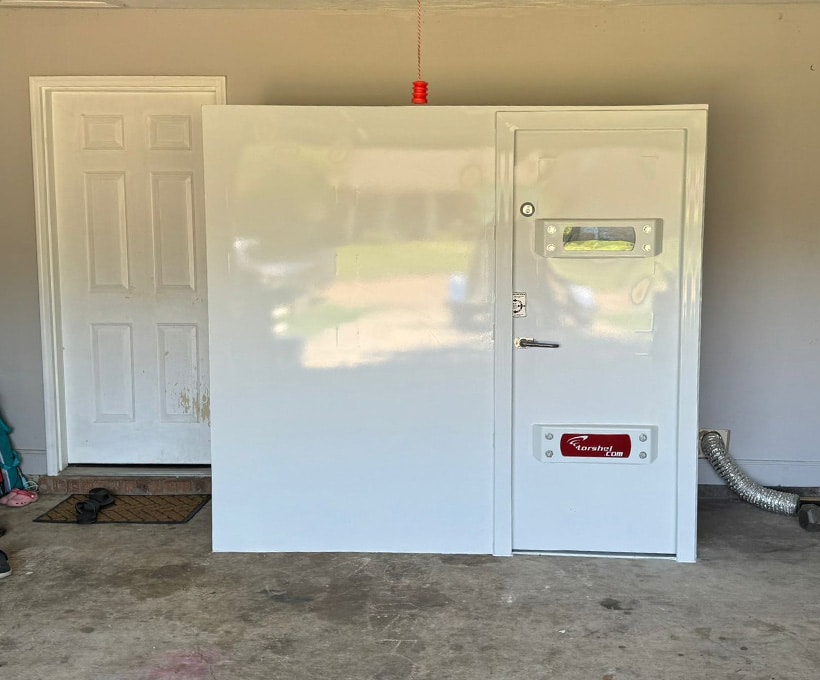

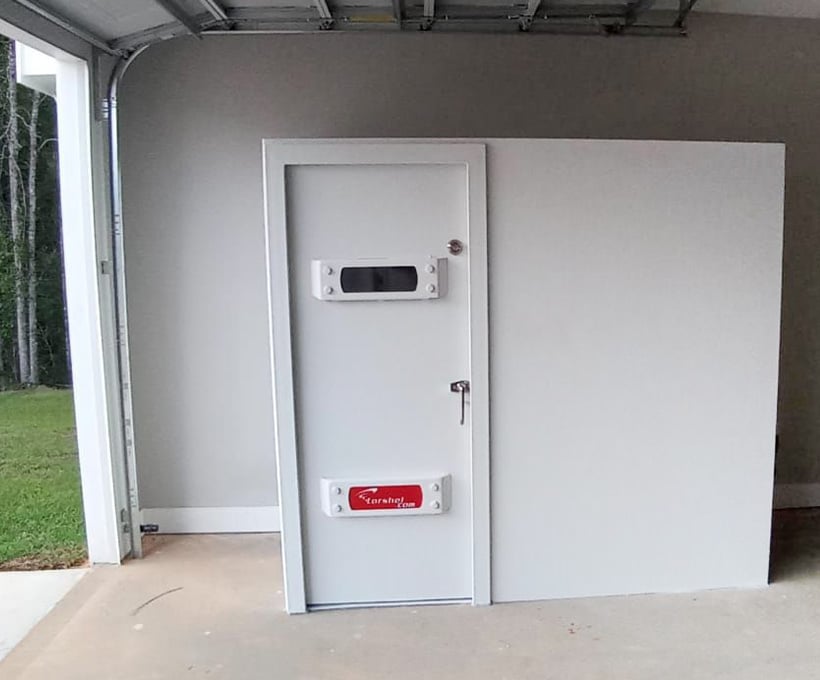

- Outside dimensions: 3’W x 7’ L x 6’5” H (21 SF)
- Capacity: 7 people at 3 SF per person
- Made of ASTM A36, 1/4″ structural steel

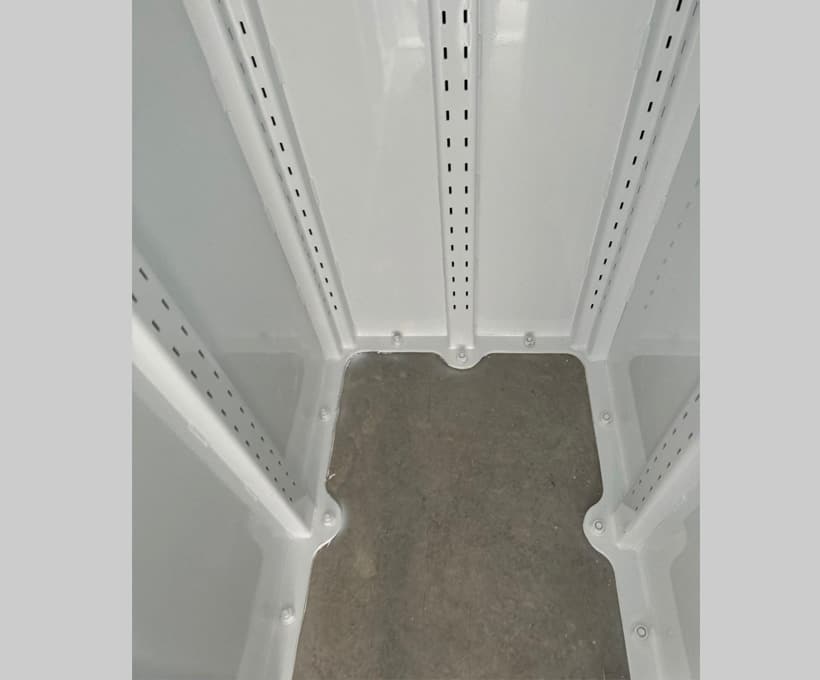

- Solid interior cage reinforcement of 2″ x 3.25″ channel frame every 2′

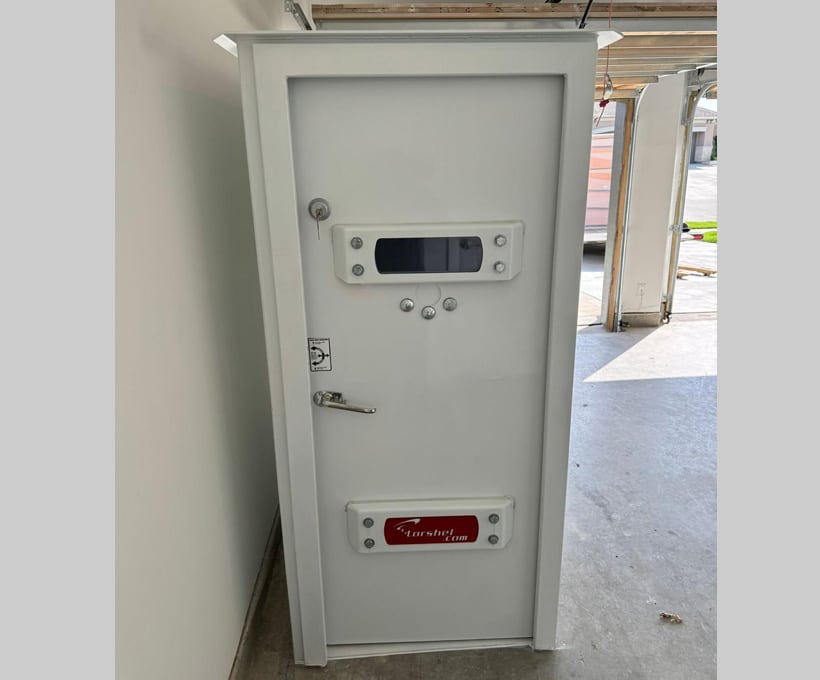

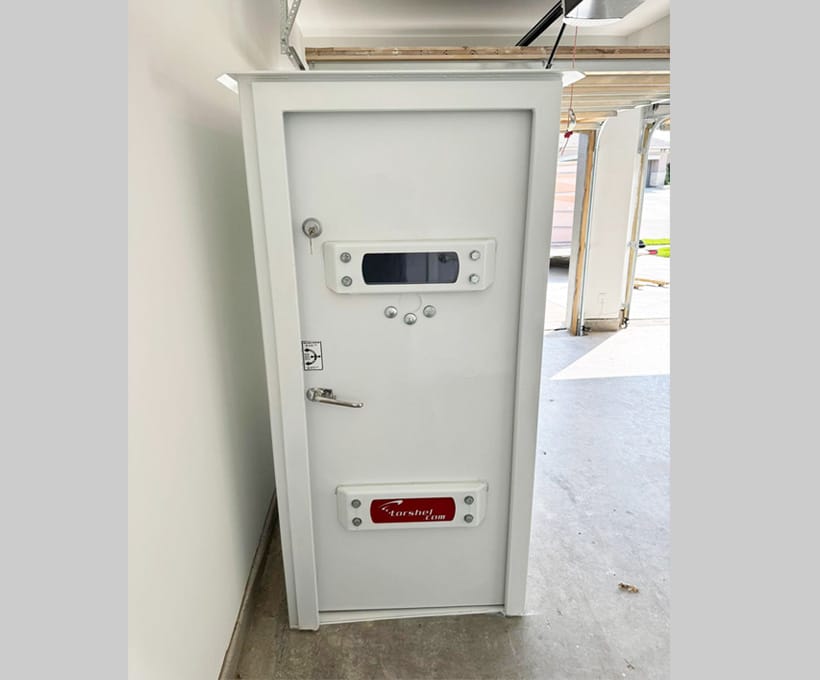

- 3/16″ precision laser cut door with 2″ x 3.25″ x 3/16″ channel reinforcement and 3 heavy-duty hinges
- 28″ W x 72″ H door opening, not wheelchair accessible due to the unit’s dimensions

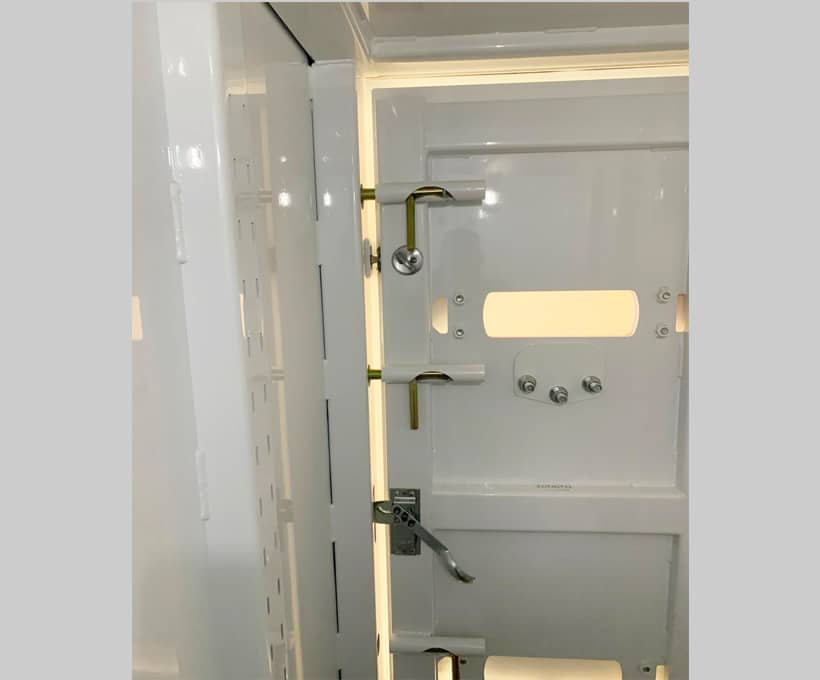

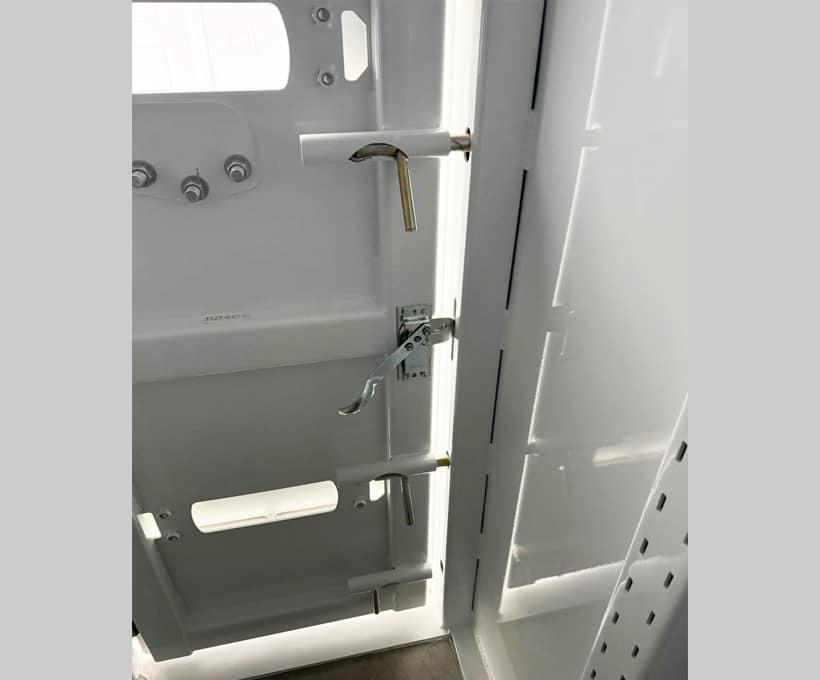

- 4 interior heavy-duty, 5/8″ x 5″ T shape steel sliding locks
- Cast iron door handle -1 per door
- Schlage commercial mechanical deadbolt lock
- Bullet-resistant window made 1.5″ polycarbonate
- 8″ air intake and extra ventilation located around the frame of the door
- Battery-powered LED lights
- For indoor shelters FREE electricity inside the safe room with a GFCI (Ground Fault Circuit Interrupter) extension cord with 4 outlets and a switch 125 V, 15 A, 14/3 Gauge.
- One-day installation
- Standard anchors for a 4″, 3,000 PSI concrete slab: (15) 3/4″ D x 4 3/4″ L HILTI expansion bolts; one every 12″. The combined tension load (pull-up force) is over 93,000 lb and over 200,000 lb of shear (horizontal force)
- One 3 foot foldable bench

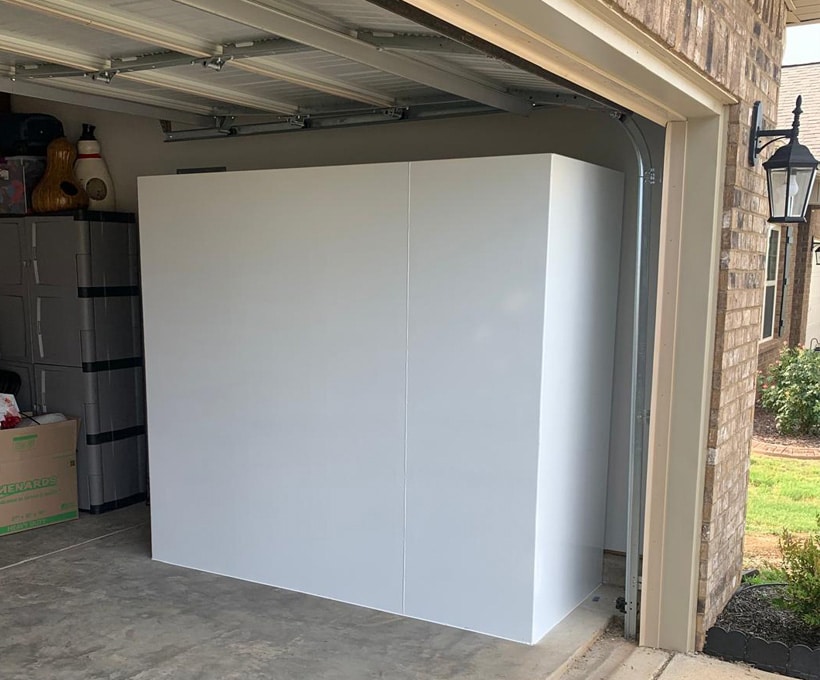

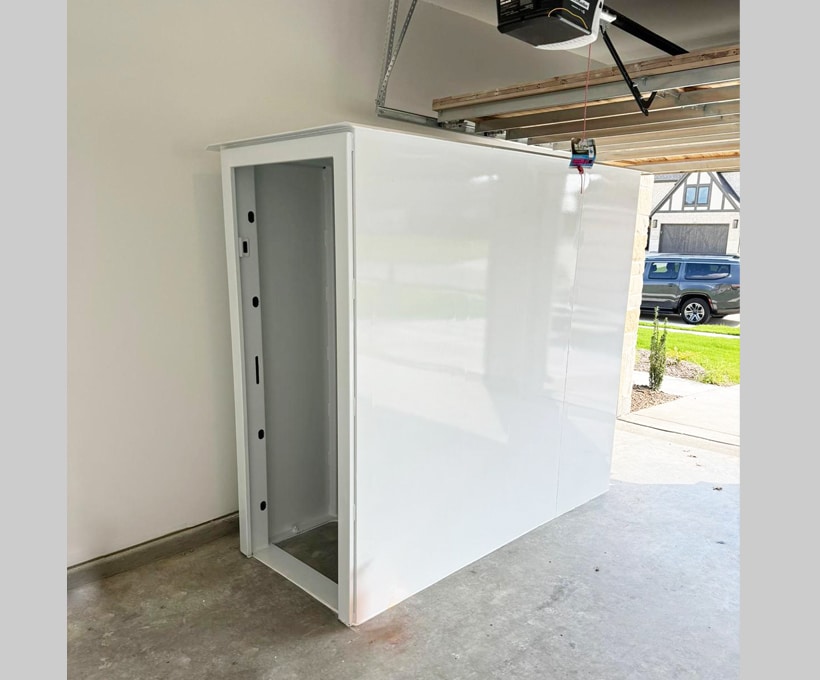

- The safe room is portable if installed in the garage or outdoors
- Powder-coated color finishing; rust, and corrosion-resistant
- Weight: approximately 1,900 lb
