Technical Specification
- Outside dimensions: 4’W x 8’ L x 6’5” H (32 SF)
- Capacity: 10-11 people at 3 SF per person
- Made of ASTM A36, 1/4” structural steel

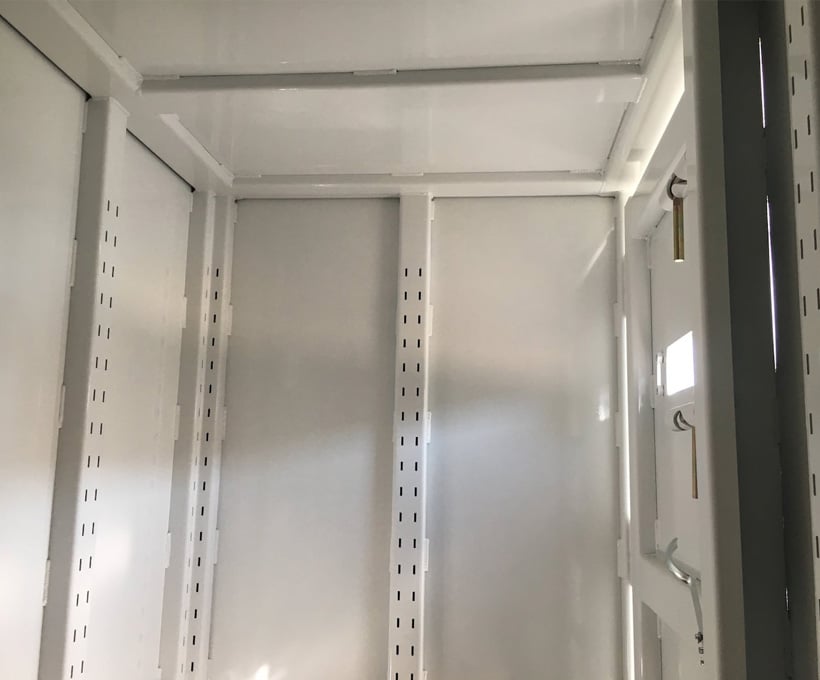

- Solid interior cage reinforcement of 2″ x 3.25″ channel frame every 2’
- 1/4” precision laser cut door with 2″ x 3.25″ x 3/16″ channel reinforcement and 3 heavy-duty hinges

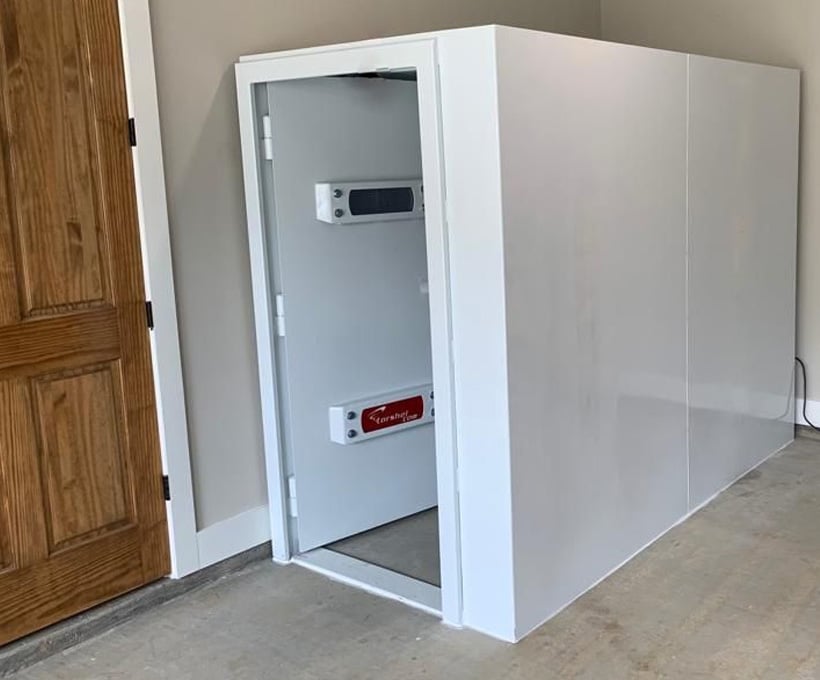

- Handicap accessible door, 33” W x 72” H true opening
- 4 interior heavy-duty, 5/8” x 5” steel sliding locks
- Cast iron door handle
- Multi-lock commercial mechanical deadbolt lock
- Bullet resistant window made of 1.5” polycarbonate
- 8” air intake and extra ventilation located around the frame of the door
- Battery-powered LED lights
- For indoor shelters FREE electricity inside the safe room with a GFCI (Ground Fault Circuit Interrupter) extension cord with 4 outlets and a switch 125 V, 15 A, 14/3 Gauge
- One-day installation

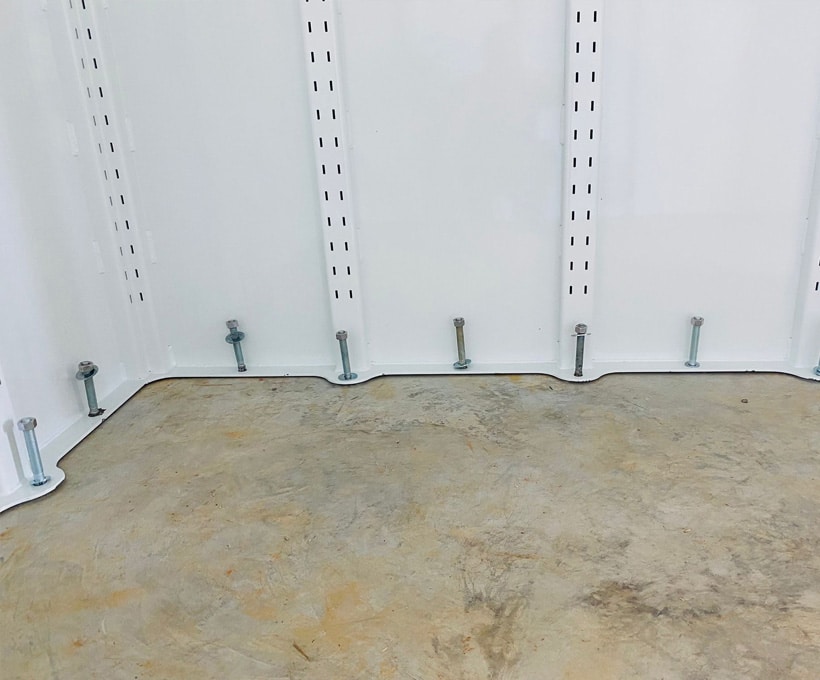

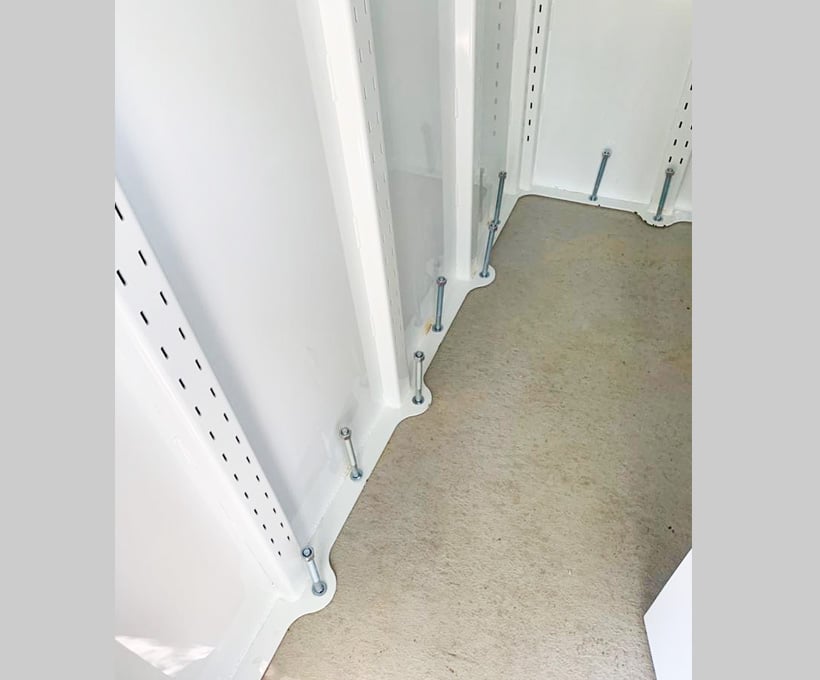

- Standard anchors for a 4”, 3,000 PSI concrete slab: 17, HILTI 3/4” D x 4 3/4” L, expansion bolts, one every 12”. Combined tension load (pull up force) is over 105,000 lbs and over 227,000 lbs of shear (horizontal force)

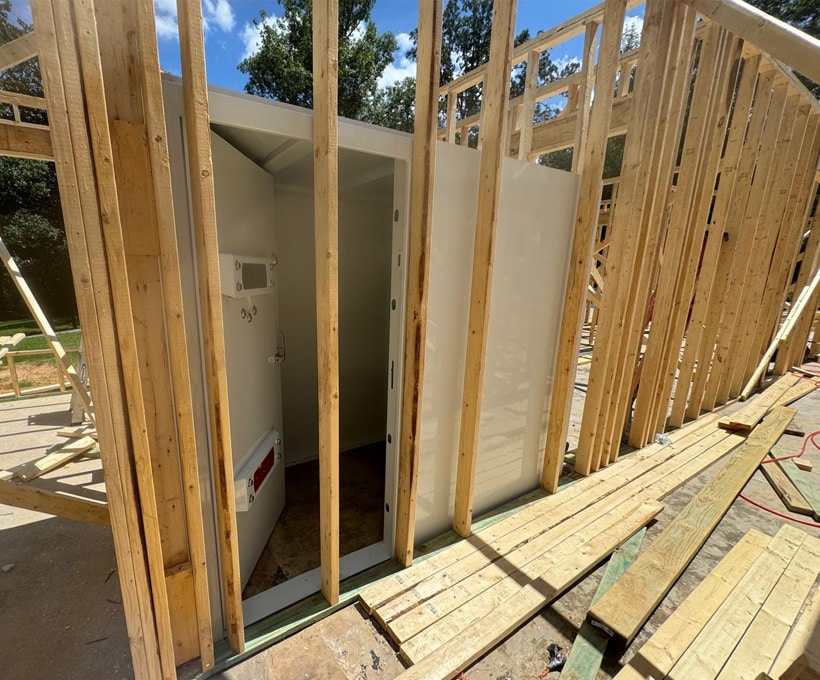

- Best anchoring method in the industry. Suggested for new construction or outdoor units: 12”, 3,000 PSI concrete slab. 17, 3/4” D x 10” L HILTI expansion bolts, one every 12”. The combined tension and shear force loads will nearly double compared to the 4” anchors

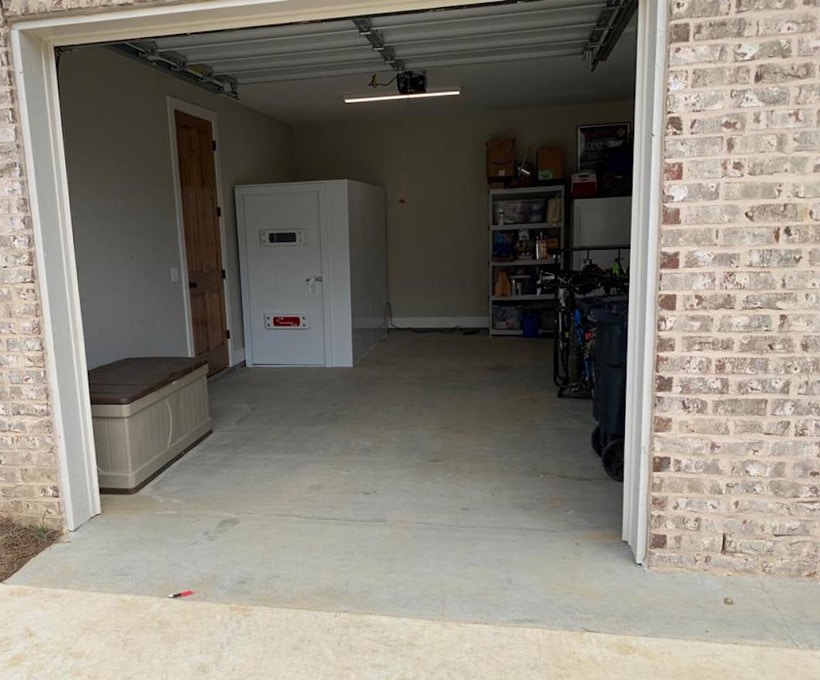

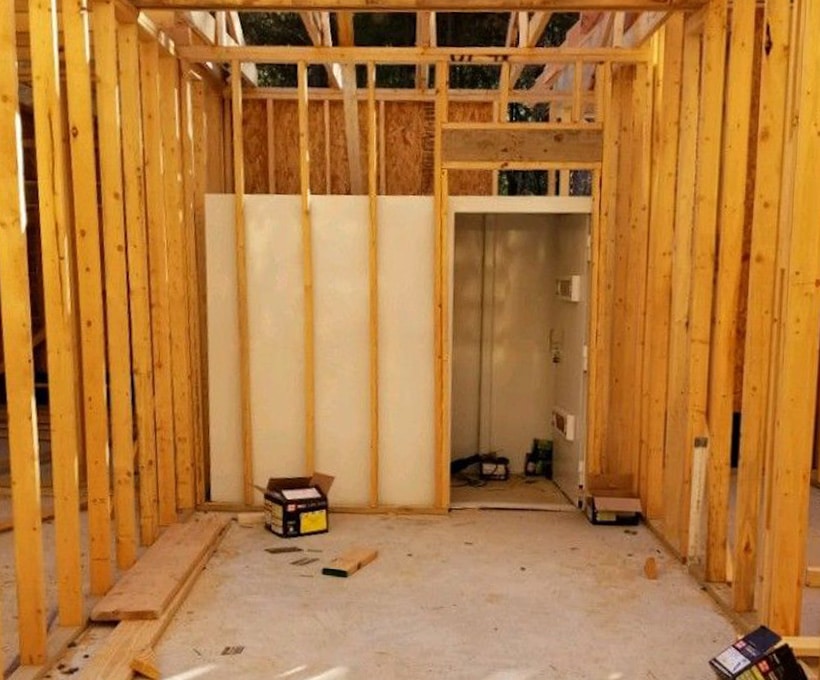

- The safe room is portable if installed in the garage or outdoors
- Powder-coated, rust and corrosion resistant
- TV mount, add $50
- Removable Roof HVAC vent, designed for new construction only, add $100
- Weight: approximately 2,300 lb.
