Technical Specification
• Outside dimensions: 6’W x 8’ L x 6’5” H (48 SF)
• Capacity: 16 people at 3 SF per person
• Made of ASTM A36, 1/4″ structural steel

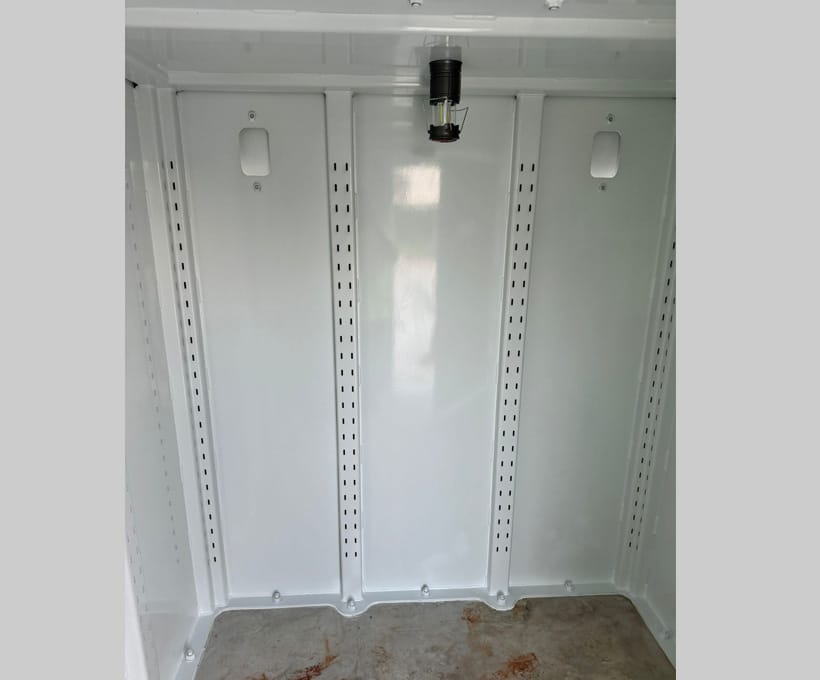

• Solid interior cage reinforcement of 2″ x 3.25″ channel frame every 2′

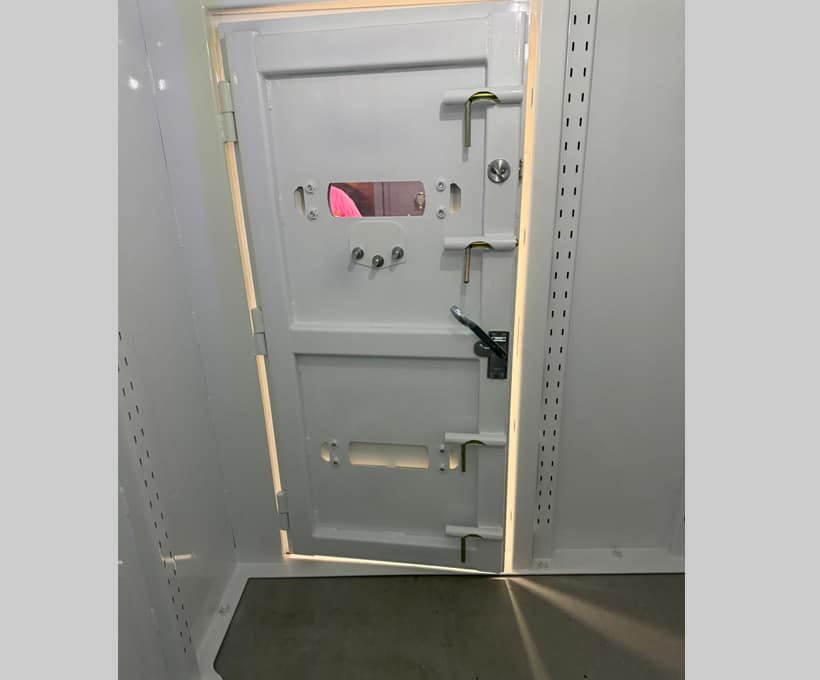

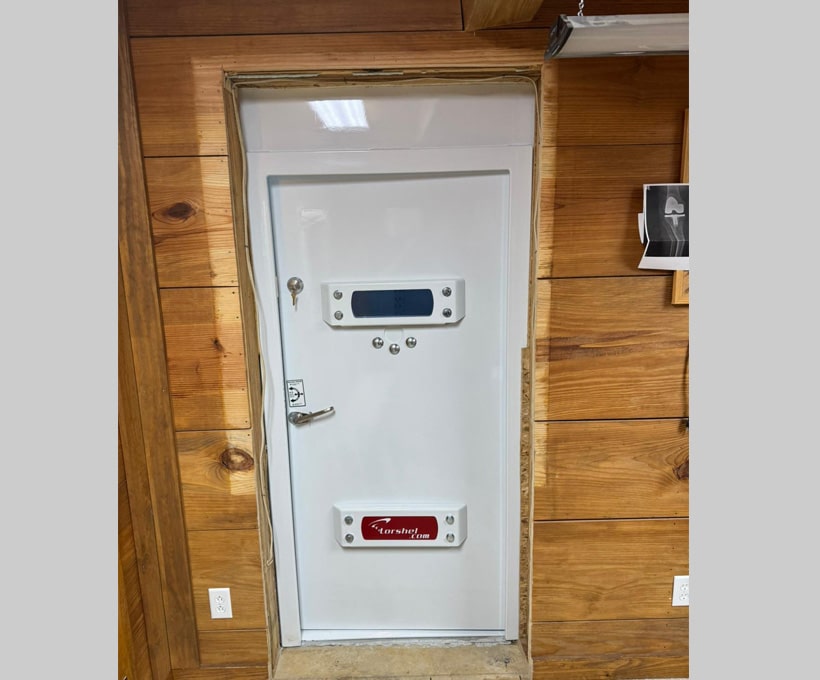

• 1/4″ precision laser cut door with 2″ x 3.25″ x 3/16″ channel reinforcement and 3 heavy-duty hinges
• Handicap accessible door, 33″ W x 72″ H true opening
• 4 interior heavy-duty, 5/8″ x 5″ steel sliding locks
• Cast iron door handle
• Commercial mechanical deadbolt lock
• Bullet resistant window made of 1.5″ polycarbonate
• 8″ air intake and extra ventilation located around the frame of the door
• Battery-powered LED lights
• One-day installation
• Standard anchors for a 4″, 3,000 PSI concrete slab: 20-25 3/4″ D x 4 3/4″ L HILTI expansion bolts, one every 12″. The combined tension load (pull-up force) is over 120,000 lb and over 260,000 lb of shear (horizontal force)
• Best anchoring method in the industry. Suggested for new construction or outdoor units: 12″, 3,000 PSI concrete slab. (20-25) 3/4″ D x 10″ L HILTI expansion bolts, one every 12″. The combined tension and shear force loads will nearly double compared to the 4″ long anchors

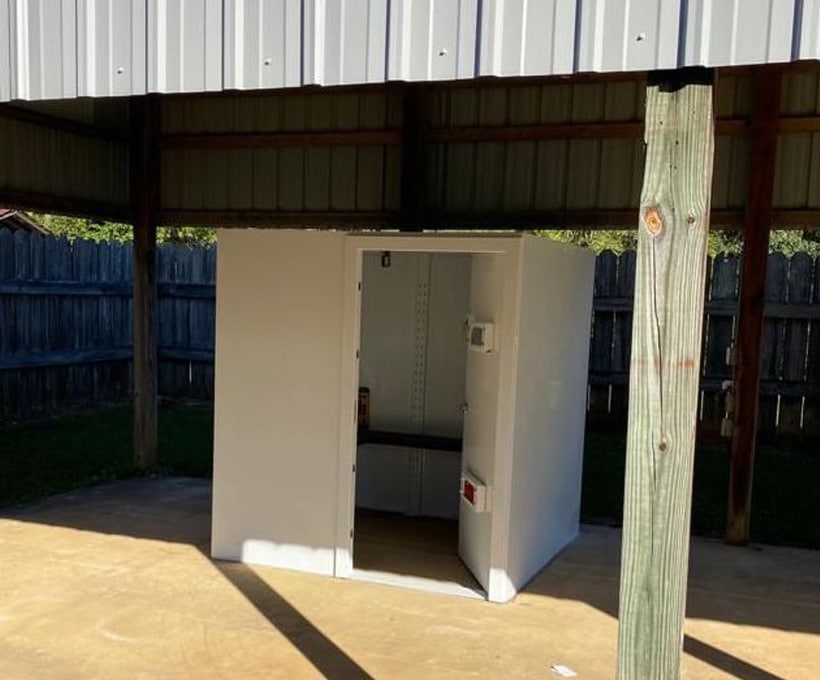

• The safe room is portable if installed in the garage or outdoors
• Powder-coated color finishing; rust, and corrosion-resistant
• Weight: approximately 3,000 lb.
