Technical Specification
- 3 in1: Safe room, storm shelter, and safe vault
- Outside dimensions: 4’W x 6’ L x 6’5” H (24 SF)
- Gross Floor Area: 24 SF
- Net Usable Floor Area: 23.9 SF
- Maximum capacity: 8 people at 3 SF per person
- Door location: On the long or on the short side
- Capacity: up to 8 people at 3 SF per person
- Passed Torshel’s extreme testing
- Exceeds FEMA 320, 361, and ICC 500 protocols
- Rated for EF5 tornadoes with 250 MPH winds
- Passed the debris impact tests at Texas Tech National Wind Institute
- Made of ASTM A36, 3/16” structural steel
- Four heavy-duty corner columns
- 2” x 3/8” rib frame every 12”

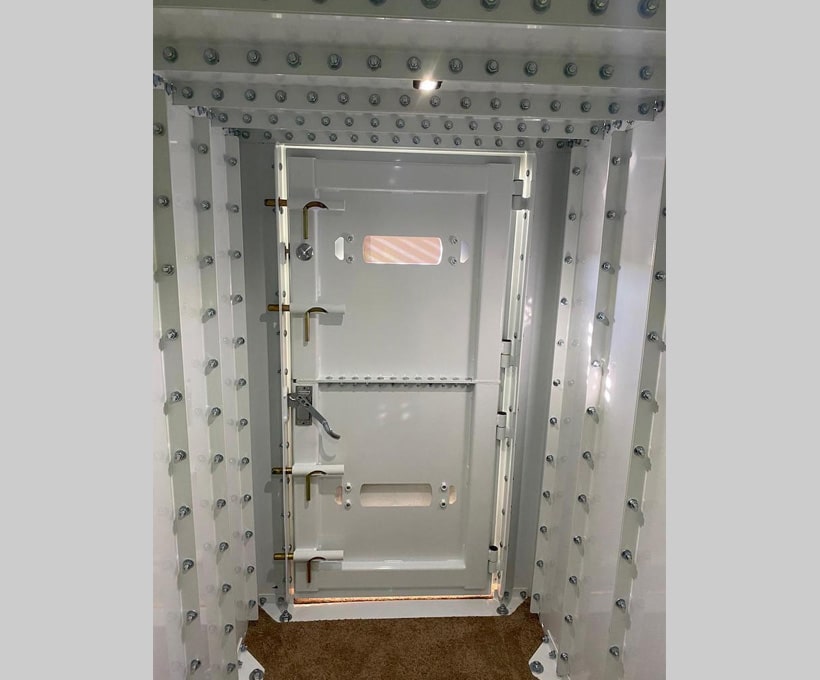

- 3/16″ precision laser cut door with 2″ x 3.25″ x 3/16″ channel reinforcement and 4 heavy-duty hinges
- Handicap-ADA accessible door, 33” W x 72” H true opening

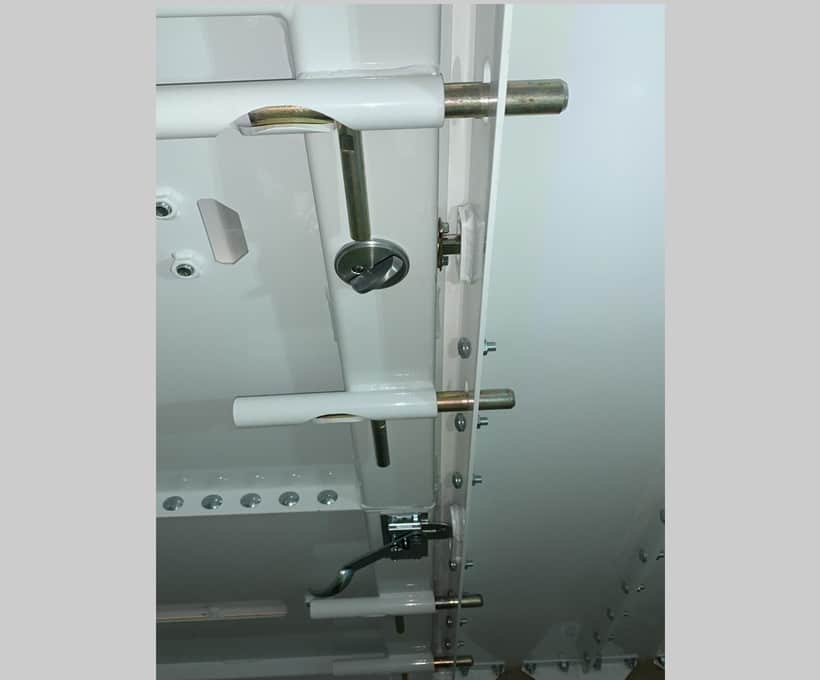

- 4 interior heavy-duty sliding locks -5/8” x 5” steel “T shape” positioned on the back side of the door
- Cast iron door handle
- One key deadbolt lock on the door
- Emergency escape wrench (to remove the bolts from the inside)
- Bullet resistant window made of 1.5” polycarbonate
- 8” air intake and extra ventilation located around the frame of the door
- Battery-powered LED lights
- One-day installation
- Standard anchors included for, 4”, 3,000 psi concrete slab: (18) 3/4” D x 4 3/4” L HILTI expansion bolts, one every 12”. The combined tension load (pull-up force) is over 80,000 lb and over 173,00 lb of shear (horizontal force)
- Best anchoring method in the industry. Suggested for new construction or outdoor units: 12”, 3,000 psi concrete slab. (18) 3/4” D x 8” L HILTI expansion bolts; one every 12”. The combined tension and shear force loads will nearly double compared to the 4” long anchors, which included for new construction – worth $200

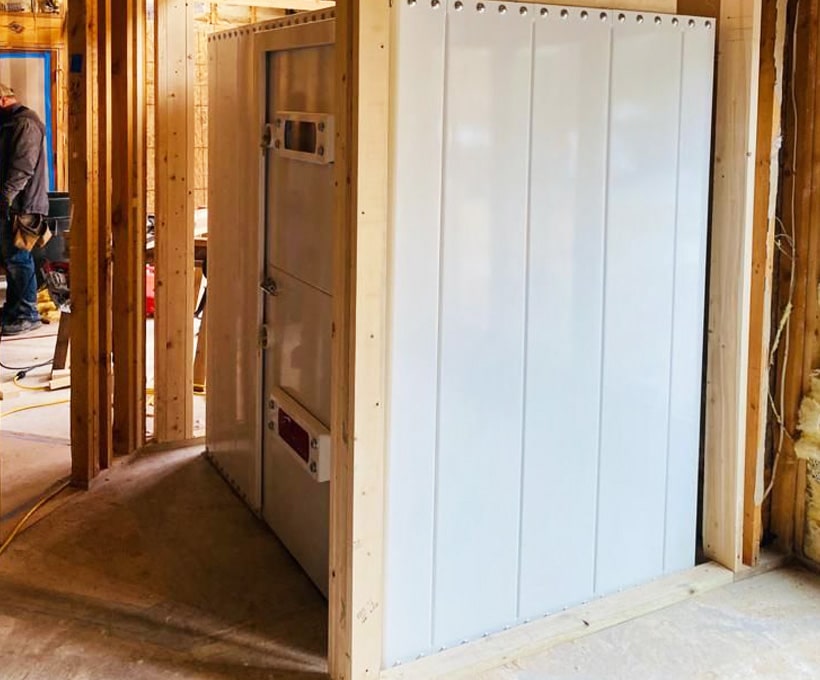

- The safe room is portable if installed in the garage or outdoors
- Powder-coated color finishing; rust, and corrosion-resistant
- Safe room lifespan: over 100 years
- Weight: approximately 1,800 lb
- Designed and made in the USA
