Technical Specification

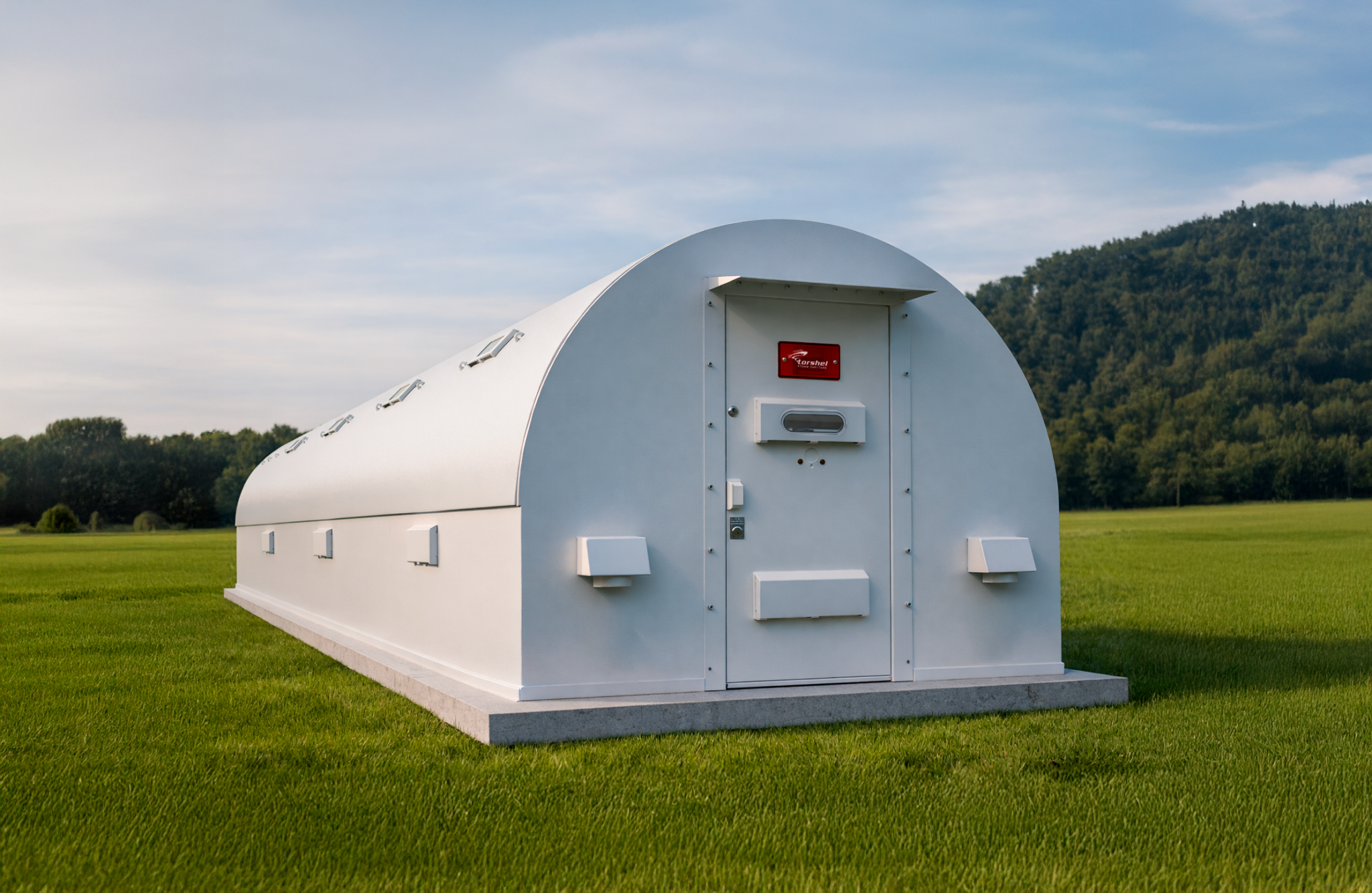

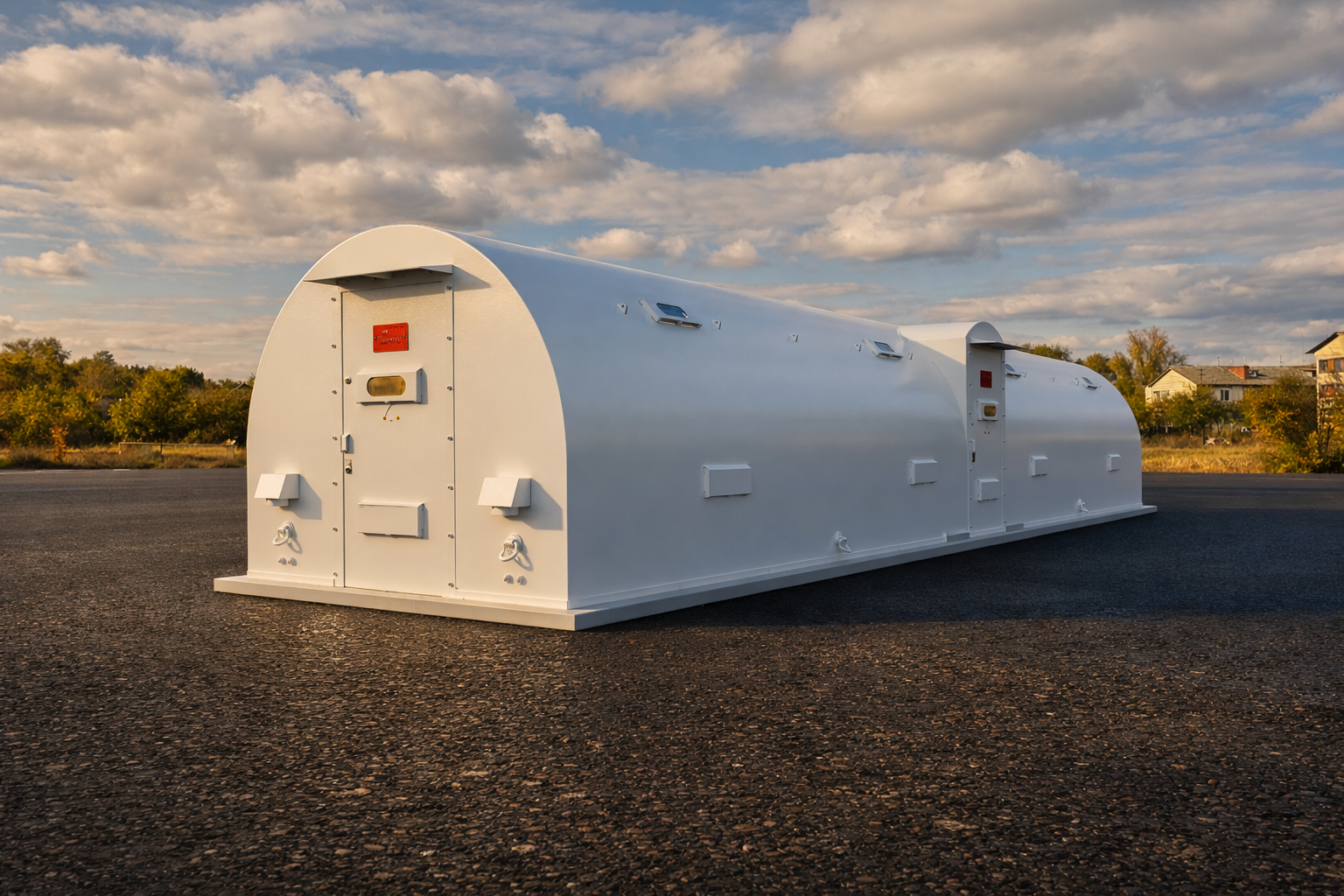

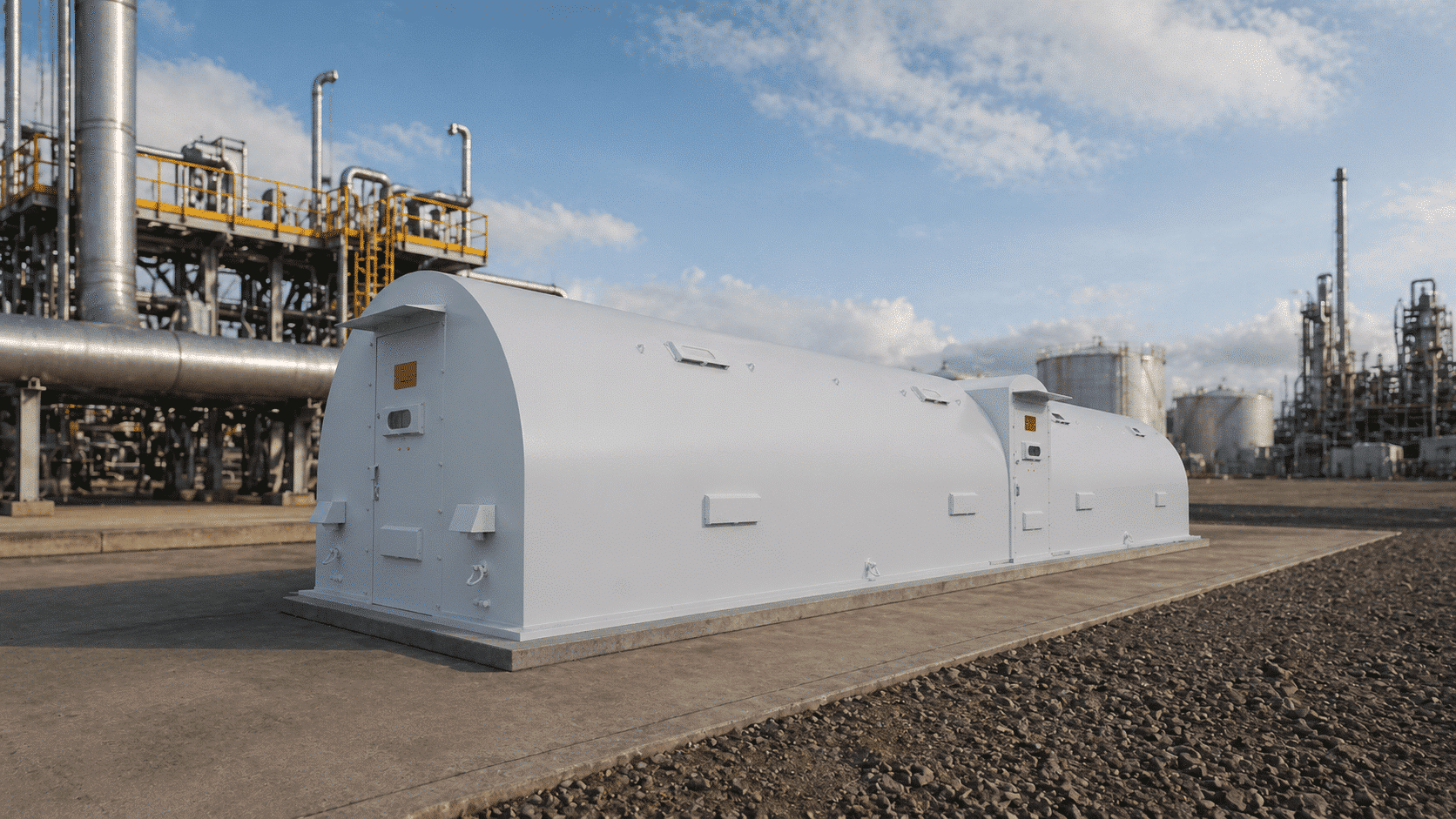

- Outside dimensions: 10’W x 48’ L x 8’H (480 SF)
- Designed for 80 people. Per ICC 500 2023. Section 502.4.1.
- Maximum capacity: 100 people
- Engineered to withstand EF5 tornadoes with 250 MPH winds, ensuring the utmost safety and security
- Components Tested by Intertek: ICC 500- 2023, ASTM E330, AND ASTM E1886 TESTING ON MODULAR COMMUNITY SHELTER, Report Number: R6436.01-550-44 R0, Issue Date: 9/27/24
- Made of ASTM A36, 1/4” structural steel

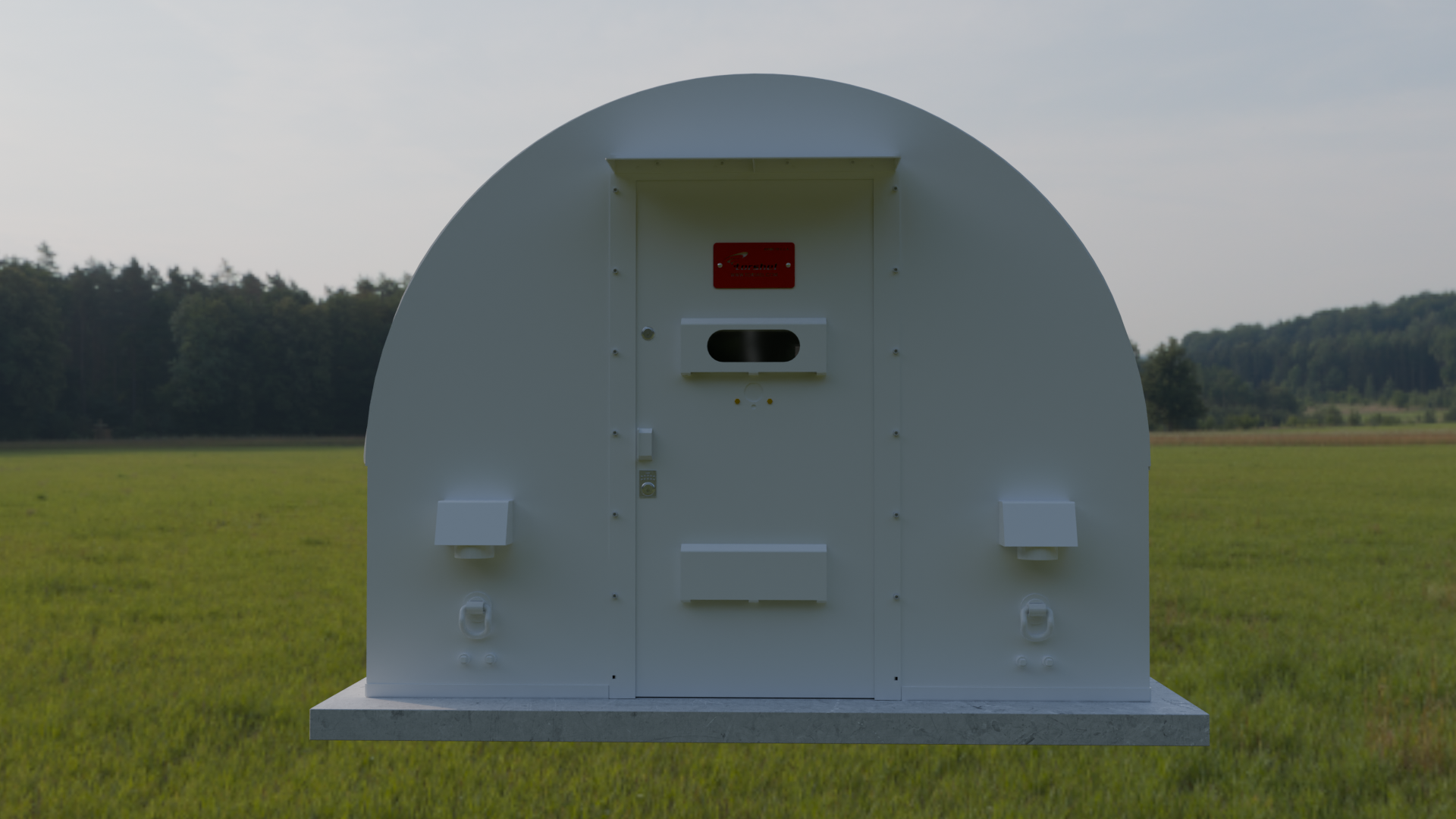

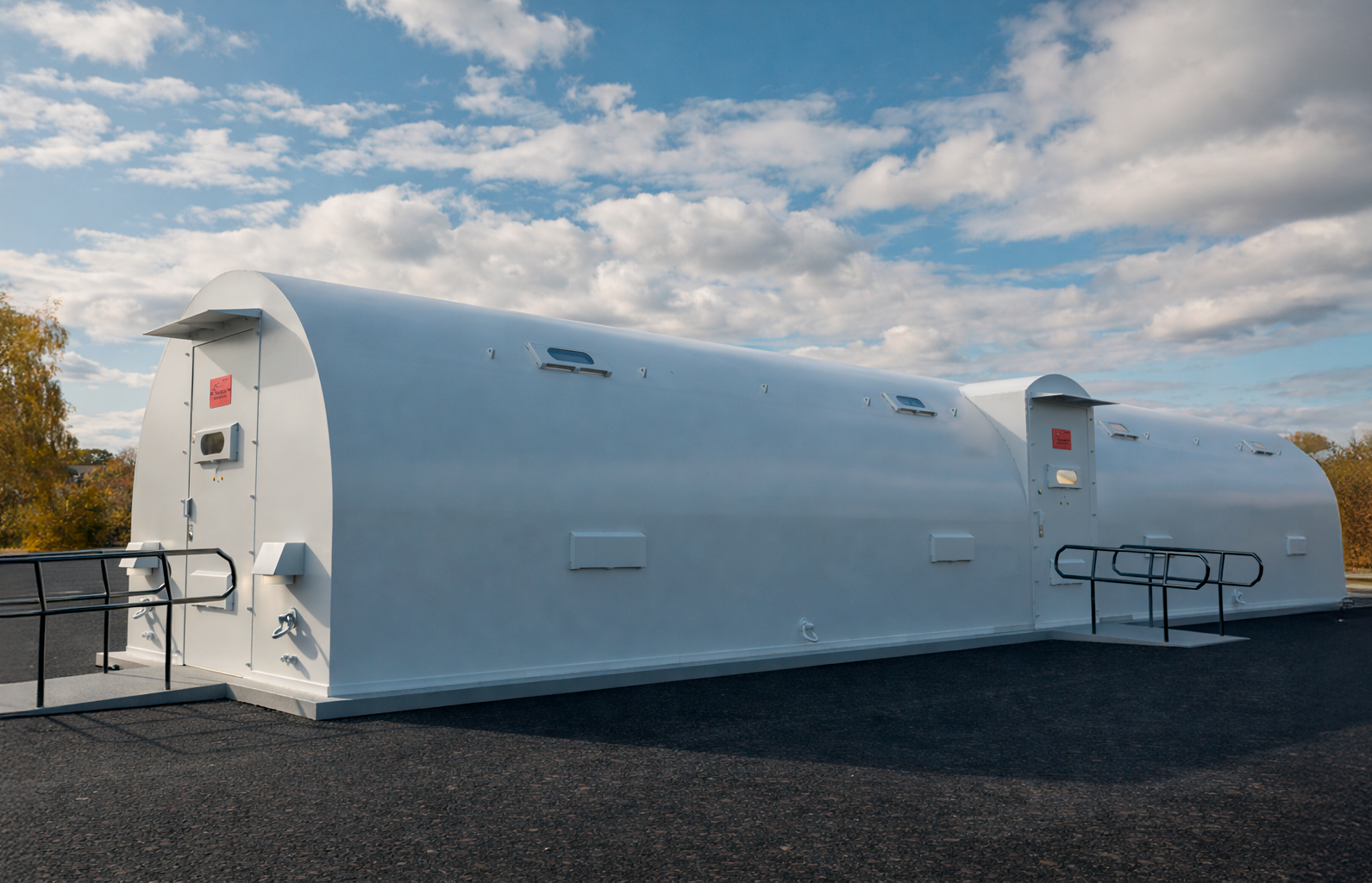

- 2 handicap-accessible doors
- Door with four (4) heavy-duty hinges

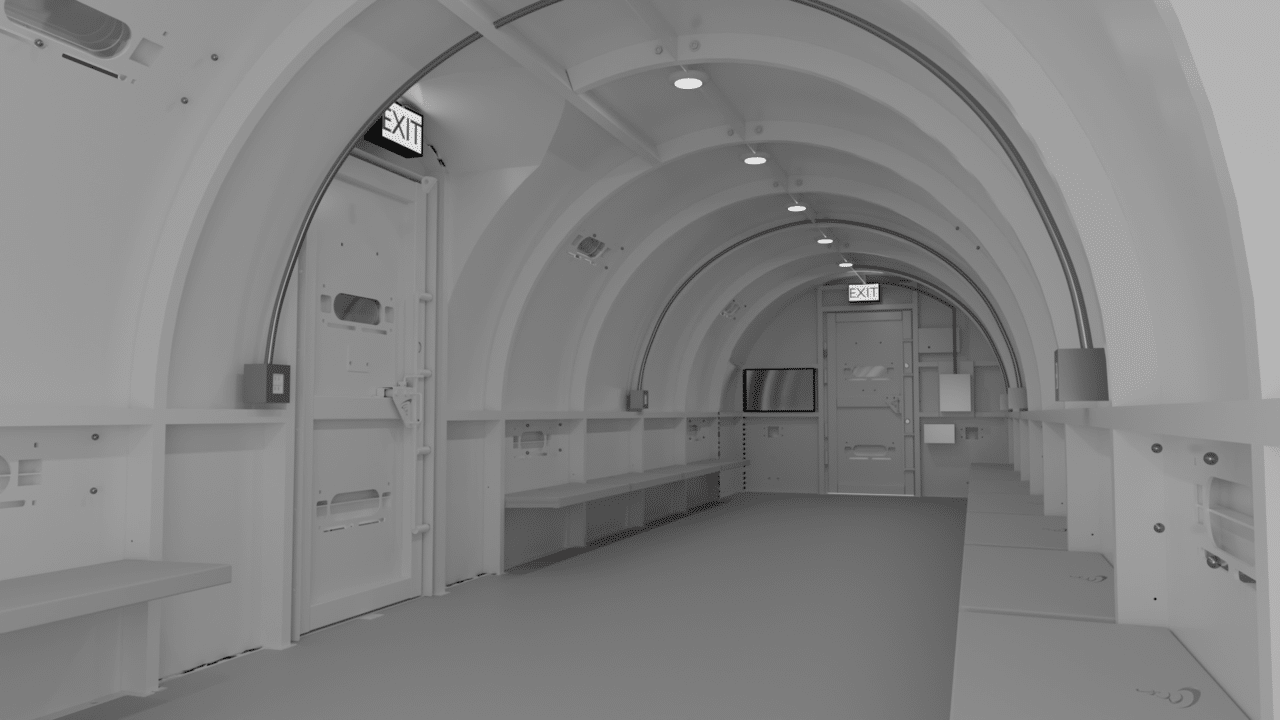

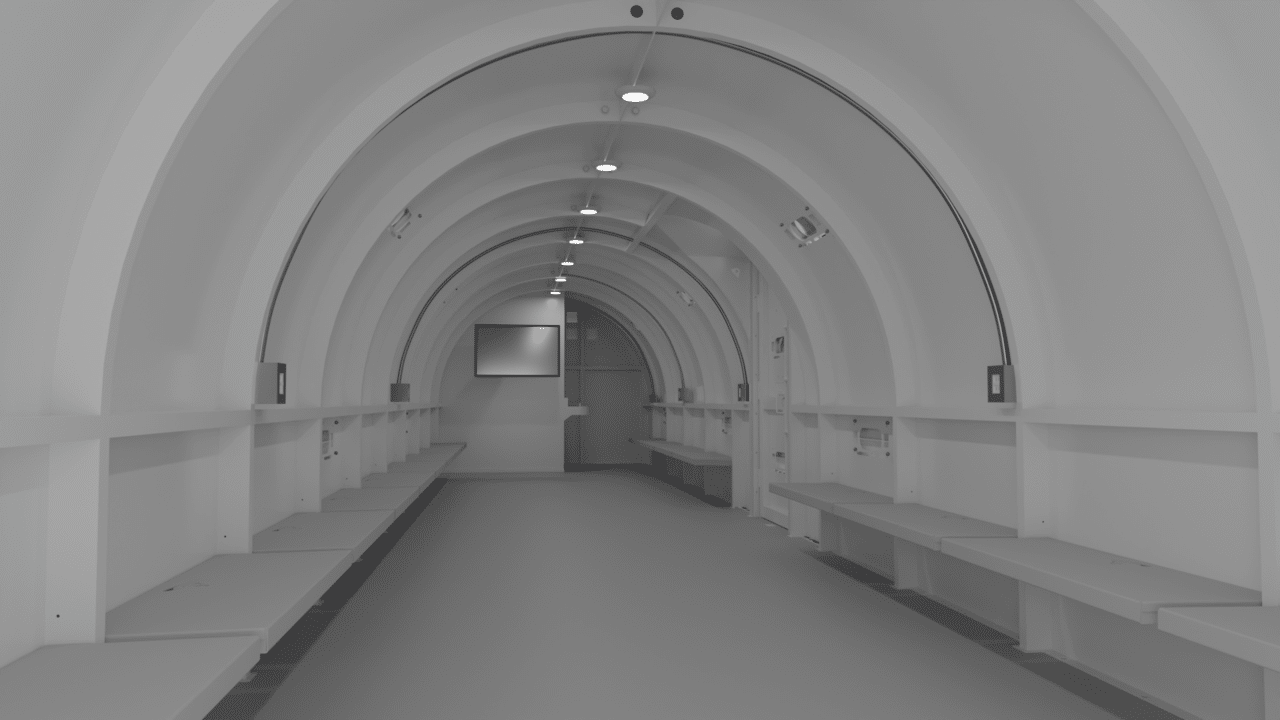

- 2 rows of foldable and removable steel benches with cup holders.
- The steel interior vertical and horizontal cage reinforcement provides added safety and structural integrity, ensuring the shelter can withstand extreme weather conditions
- Four (4) interior heavy-duty, 5/8” x 5” steel sliding locks per door
- Mechanical deadbolt locks
- Bullet-resistant windows made of 1.5” polycarbonate
- Our shelter is anchored using the best method in the industry. Due to its dimensions , it must be installed on a specially designed concrete slab, ensuring a secure and stable foundation. Blue prints provided.
- 3/4” D x 8” L HILTI zinc-plated expansion anchors or HIT-Z HY200 (ultimate-performance anchor rod for injectable hybrid anchors (carbon steel), one every 18”)
- White powder-coated color finishing; rust and corrosion-resistant with three (3) years of warranty
- Multiple options to install portable AC Units
- Hooks located on the roof for lifting with a crane
- With proper maintenance, this community storm shelter has a lifespan of over 50 years. It is a long-term investment in safety and security.
- Weight: approximately 20,000 lb.
- Materials traceability documentation available for an additional fee
This unit comes with 1 ADA chemical bathroom located inside the safe room
- Interior dimensions: 5 ft W x 5ft L (25 SF)
- Battery-powered LED lights
- One (1) exhaust fan
- One (1) air intake to provide airflow
- One (1) chemical toilet
- One (1) portable sink
- One (1) mechanical lock
- Internal walls made of ASTM A36, 3/16” structural steel
